Innovative packaging
with controlled atmosphere

Innovative packaging with controlled atmosphere

We design, build and service customized Modified Atmosphere Packaging (MAP) Equipment that extends shelf life and freshness.

I WANT MAP EQUIPMENT

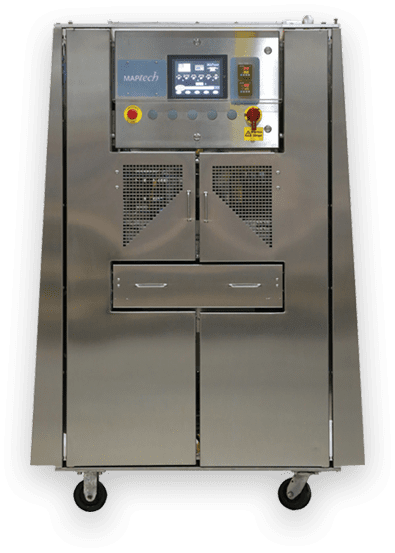

T-100
Small Footprint
with a big Impact

The T-100 is perfect for start- ups, test-kitchens or small volume applications. The manually loaded T-100 has the same exchange of atmosphere as the high speed models, in a smaller footprint.

Download Spec Sheet
Learn More About T-100

Features

  • Small footprint
  • Food grade safe materials and easy wash down capability
  • Simple tool changes
  • Easy to operate

SEALING CAPACITY

Trays
Size
One up
11" X 17"
Two Up
8" X 11"
Depth
Up to to 5"
CPM up to 4

T-300
Flexible for
Unique Products

The flexible design of the T-300 allows for easy tool change out and provides high output at a lower cost.

Download Spec Sheet
Learn More About T-300

Features

  • Nema 4x total wash down
  • Fully integrated light curtain safety envelope
  • Touch screen control with data capture and internet capable troubleshooting.
  • Automate loading/unloading
  • Integrates seamlessly with up and down stream automation
  • Tight tolerance for gas residuals.

SEALING CAPACITY

Trays
Size
Eight up
6.75"
Four up
9.25"
CPM up to 12
Consult factory for custom tooling configurations.

T-400
Mega Machine

High speed, high performance, high capacity, fully automatic T-400 with uniquely formulated atmosphere exchange to give industry best in shelf life and product freshness. T-400’s flexible design is compatible with many types of package and film materials for your unique package and product life requirements.

Download Spec Sheet
Learn More About T-400

Features

  • Nema 4x total wash down
  • Fully integrated light curtain safety envelope
  • Touch screen control with data capture and internet capable troubleshooting.
  • Automated loading and unloading
  • Integrates seamlessly with up and down stream automation
  • Tight tolerance for gas residuals.
  • For high end automation on a massive production scale.

SEALING CAPACITY

Trays
Size
Eight up
6.75"
Four up
9.25"
CPM up to 12
Consult factory for custom tooling configurations.

Compare our
MAP Equipment

  • T-100
  • T-300
  • T-400
T-100T-300T-400
$

Features
Footprint SmallMediumLarge
Food grade safe materials
Wash downEasy washdown capabilityNema 4x total wash downNema 4x total wash down
Simple tool changes
Easy to operate
Fully integrated light curtain safety envelopeNA
Touch screen control
Touch screen control with data capture and internet capable troubleshooting.NA
LoadingManualManual / Optional autoloadAutomated
UnloadingManualAutomatedAutomated
Integrates seamlessly with up and down stream automationNA
Tight tolerance for gas residualsNA
Flexible customization for Low or High productionNA

Specifications
Height74.4"77.84"77.84"
Length50"144.43"144.83"
Width34.15"102.46"102.46"
Weight1500 lbs4000 lbs4000 lbs

Sealing Capacity
Tray DepthUp to 5"NANA
One TrayUp to 11" X 17" X 5"NANA
Two TrayUp to 8" X 11"NANA
Four TrayNAUp to 9.25"Up to 9.25"
Eight TrayNAUp to 6.75"Up to 6.75"
CPMUpto 4Upto 12Upto 12

Requirements
Air ConditionClean & DryClean & DryClean & Dry
Air Inlet Size3/4” NPT Female Pipe3/4” NPT Female Pipe3/4” NPT Female Pipe
Air Supply5 CFM @ 90 PSI20 CFM @ 90 PSI 20 CFM @ 90 PSI
Frequency50/60Hz50/60Hz50/60Hz
Gas Inlet Size3/4″ NPT Female Pipe3/4″ NPT Female Pipe3/4″ NPT Female Pipe
Power Consumption20 AMP30 AMP30 AMP
Vacuum1.5” NPT Inlet3” NPT Inlet3” NPT Inlet
Voltage240 VAC Three Phase240 VAC Three Phase240 VAC Three Phase
Water Inlet Size½” NPT Female Pipe½” NPT Female Pipe ½” NPT Female Pipe
Water Supply40 GPH @ 70°F40 GPH @ 70°F40 GPH @ 70°F


Work With The Industry Leader
in Extended Shelf Life

Connect with one of our expert team members about how we can bring your packaging dreams to life.

Talk to a MAP expert today
