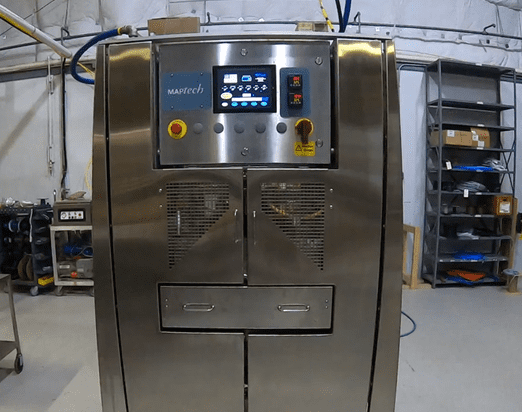

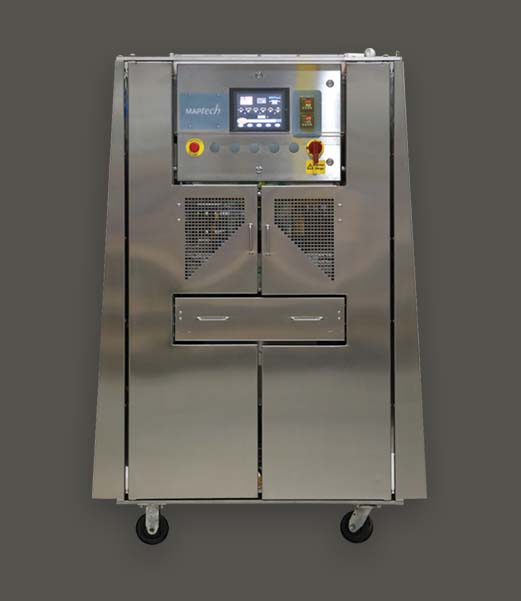

T-100
Smart footprint with a big impact.
The T-100 is perfect for start- ups, test-kitchens or small volume applications. The manually loaded T-100 has the same exchange of atmosphere as the high speed models, in a smaller footprint.
Features
- Small footprint
- Food grade safe materials and easy wash down capability
- Simple tool changes
- Easy to operate
Sealing Capacity
| Trays | Size |
|---|---|
| One up | 11″ x 17″ |
| Two up | 8″ x 11″ |
| Depth | Up to 5″ |
Consult factory for custom tooling configurations.
Specifications
| Height | 74.4″ |
| Length | 50″ |
| Width | 34.15″ |
| Weight | 1500 lbs |
Requirements
| Voltage | 240 VAC Three Phase |
| Power Consumption | 20 AMP |
| Frequency | 50/60Hz |
| Air Condition | Clean & Dry |
| Air Supply | 5 CFM @ 90 PSI |
| Air Inlet Size | 3/4″ NPT Female Pipe |
| Water Supply | 40 GPH @ 70°F |
| Water Inlet Size | 1/2″ NPT Female Pipe |
| Gas Inlet Size | 3/4″ NPT Female Pipe |
| Vacuum | 1.5″ NPT Inlet |
